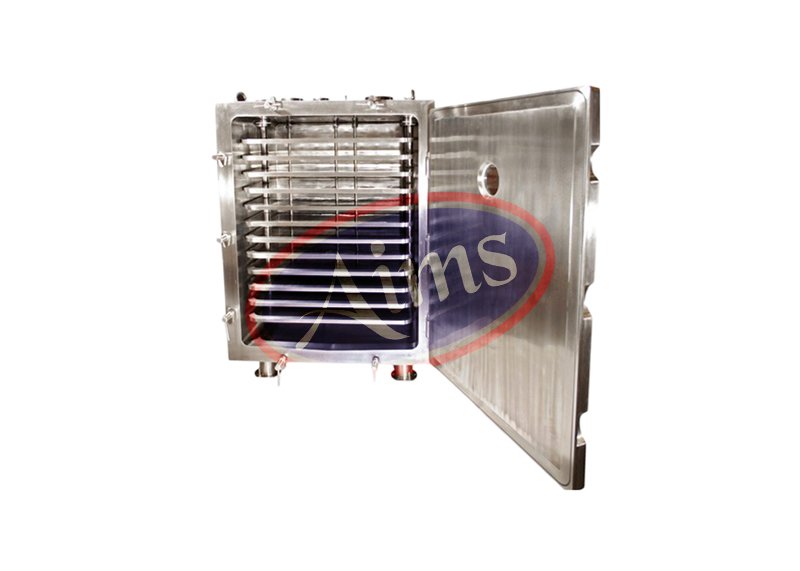

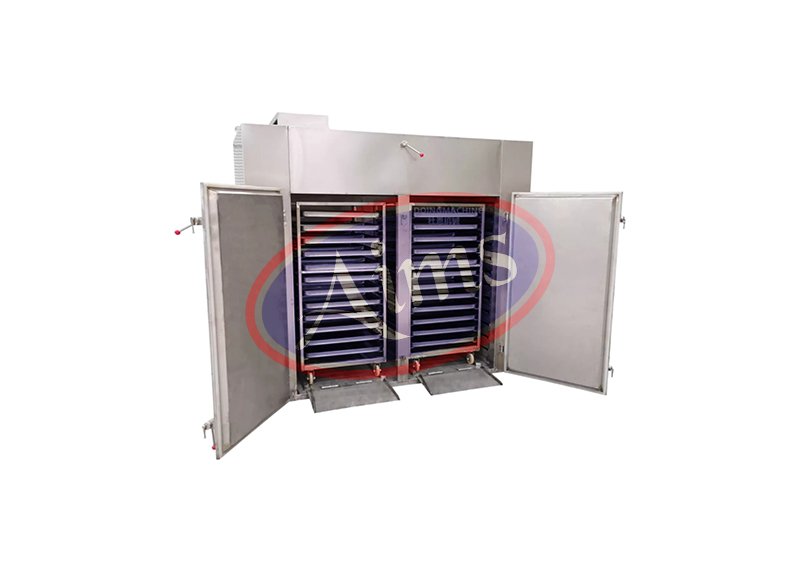

Tray Dryer

Salient Features

  • Tray Dryers Are Designed To Provide Uniform Drying Throughout The Material Being Dried, Ensuring Consistent Quality.
  • Tray Dryers Are Versatile And Can Be Used For Drying A Wide Range Of Materials, Including Granules, Powders, And Herbs.
  • Tray Dryers Can Dry Materials Quickly, Reducing The Time Required For The Drying Process.
  • Tray Dryers Are Cost-Effective As They Require Low Maintenance And Have A Long Service Life.
  • Tray Dryers Are Easy To Operate, And The Drying Process Can Be Controlled With Precision.
  • Tray Dryers Are Easy To Clean And Sanitize, Making Them Suitable For Use In Industries Where Hygiene Is Crucial, Such As The Food And Pharmaceutical Industries.
  • Tray Dryers Are Designed To Be Energy-Efficient, And The Use Of Hot Air As The Drying Medium Makes Them More Environmentally Friendly Than Other Drying Methods.

Technical Specifications

MODEL AIMS – TD – 12 AIMS – TD – 24 AIMS – TD – 48 AIMS – TD – 96 AIMS – TD – 192
Loading Capacity 12 Trays 24 Trays 48 Trays 96 Trays 192 Trays
Number Of Doors 1 Nos 1 Nos 1 Nos 2 Nos 2 Nos
Number Of Blowers 1 Nos 1 Nos 1 Nos 2 Nos 4 Nos
Electrical Heating Load (kW) 6 kW 12 kW 18 kW 27 kW 50 kW
Electric Motor (HP / kW / RPM) 1 HP / 0.7 kW / 1440 RPM 2 HP / 1.5 kW / 1440 RPM 3 HP / 2.3 kW / 1440 RPM 5 HP / 3.7 kW / 1440 RPM 7.5 HP / 5.5 kW / 1440 RPM
Steam Heater Coils (Nos) 2 Nos 2 Nos 2 Nos 2 Nos 2 Nos
Steam Pressure (Kg / cm2) 3.3 Kg / cm2 3.3 Kg / cm2 3.3 Kg / cm2 3.3 Kg / cm2 3.3 Kg / cm2
Steam Consumption (LBS / Hour) 25 LBS / Hour 45 LBS / Hour 60 LBS / Hour 80 LBS / Hour 120 LBS / Hour
Insulation (mm)100°C / 200°C / 300°C 50 / 75 / 75 mm 50 / 75 / 75 mm 50 / 75 / 75 mm 50 / 75 / 75 mm 50 / 75 / 75 mm
Tray Loading Rack System Rack System 1 Trolley 2 Trolley 4 Trolley
Trolley Dimension (mm) Fixed Racks Fixed Racks 840 X 960 X 1780 840 X 960 X 1780 840 X 960 X 1780
Tray Dimension (mm) 406 mm X 812 mm X 31 mm / 16” Inch X 32” Inch X 1+¼” Inch
Electrical Power Supply 230 Volts ± 10% Or 440 Volts ± 10% / 50 Hz Or 60 Hz / 3 Φ Phase / A.C. Power Supply
