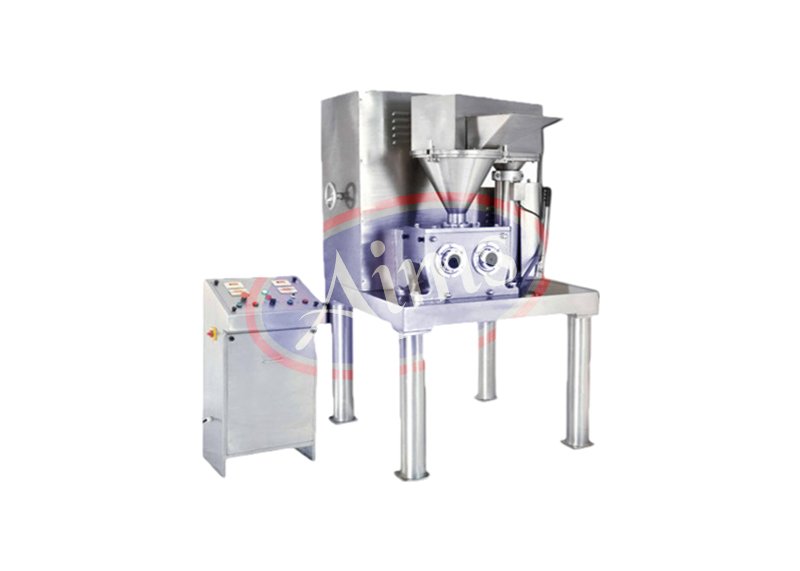

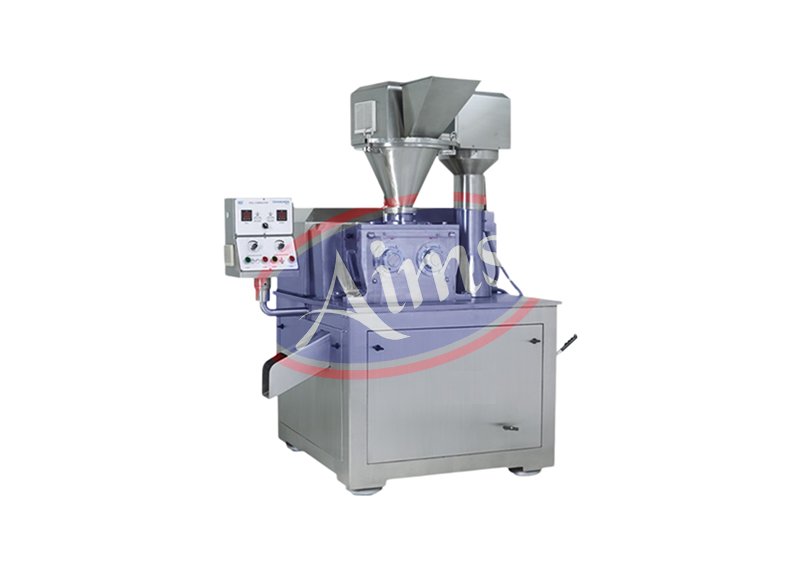

Roll Compactor

Salient Features

  • Chamunda Roll Compactor, The Machine Is Used For Increased Bulk Density, Making Granules, Dust Free Processing And Reducing The Particle Size Of Pharmaceutical Ingredients In The Pharmaceutical Industry, In Food As Well As Chemical Industry For Densification And Granulation Of Powder, Life Science Product, Bulk Drugs & Beverages Segments.
  • As The Volume Decreases Through The Region Of Maximum Pressure, The Material Is Formed Into A Solid Compact Sheet Or Flakes Of Ingredients.
  • Material In Form Of Powder Passes Through The Two Counter-Rotating Rolls Of Roller Compactor Under Very High Pressure.

Salient Features

  • ACVF Drive For Rolls (Optional)
  • Available In Plain & Water Jacketed Model
  • Flameproof Compact Designed Model
    • .
  • cGMP Plain & Water-Jacketed Roller Compactor.
  • Contact Parts Are Made Of S.S. 316 Except Rollers
  • Covers Are Designed To Obtain Dust-Free Operation
  • Electrical Interlocking Between Main Roll Drive And Feed Screw Drive
  • Feed Screw Is Sleeplessly Driven Through Variable Frequency Drive.
  • Hard Chrome Plated & Mirror Finished Compacting Rolls Made Of Tools Steel.
  • Hydraulic Power Pack System (Optional)
  • In Compliance With cGMP Guidelines.
  • PLC System As Per 21 CFR Part 11 (Optional)
  • Pre-Compaction Chamber Guides The Product To Rolls Without Any Slippage Or Leakage.
  • Water Jacketing Arrangement (Optional)

Technical Specifications

MODEL AIMS – RC – 200 / 50 AIMS – RC – 200 / 75 AIMS – RC – 200 / 100 AIMS – RC – 200 / 150 AIMS – RC – 200 / 200 AIMS – RC – 300 / 300
Maximum Output (Kg / Hour) 20 To 60 Kg / Hour 30 To 100 Kg / Hour 50 To 250 Kg / Hour 100 To 350 Kg / Hour 100 To 500 Kg / Hour 100 To 1000 Kg / Hour
Roll Size (Diameter X Length) (mm) Ø 200 X 50 (L) Ø 200 X 75 (L) Ø 200 X 100 (L) Ø 200 X 150 (L) Ø 200 X 200 (L) Ø 300 X 300 (L)
Roll Speed (RPM) Through Step Pulley Drive 6 To 25 RPM 6 To 25 RPM 6 To 25 RPM 6 To 22 RPM 6 To 22 RPM 6 To 22 RPM
Feed Screw Speed (RPM) Through A.C. Variable Frequency Drive 10 To 60 RPM 10 To 60 RPM 10 To 60 RPM 10 To 60 RPM 10 To 60 RPM 10 To 60 RPM
Roll Drive Motor (HP / kW / RPM) 5 HP / 3.7 kW / 960 RPM 5 HP / 3.7 kW / 960 RPM 7.5 HP / 5.5 kW / 960 RPM 10 HP / 7.5 kW / 960 RPM 20 HP / 15 kW / 960 RPM 30 HP / 22.4 kW / 960 RPM
Feed Screw Drive Motor (HP / kW / RPM) 3 HP / 2.3 kW / 1440 RPM 3 HP / 2.3 kW / 1440 RPM 3 HP / 2.3 kW / 1440 RPM 5 HP / 3.7 kW / 1440 RPM 7.5 HP / 5.5 kW / 1440 RPM 10 HP / 5.5 kW / 1440 RPM
Total Electric Power (HP / kW) 8 HP / 6 kW 8 HP / 6 kW 10.5 HP / 7.8 kW 15 HP / 11.2 kW 22.5 HP / 16.7 kW 40 HP / 30 kW
Electrical Power Supply 230 Volts ± 10% Or 440 Volts ± 10% / 50 Hz Or 60 Hz / 3 Φ Phase / A.C. Power Supply
