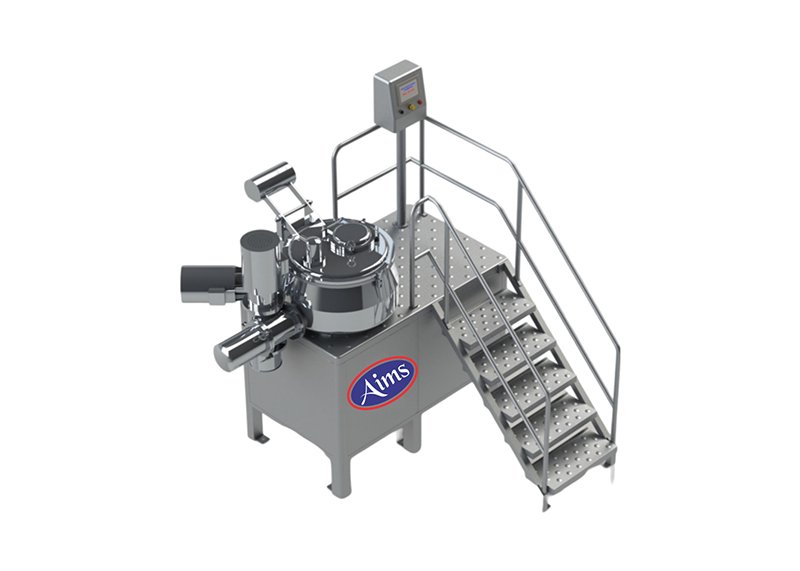

Rapid Mixer Granulator

  • Home
  • Rapid Mixer Granulator

Salient Features

  • In Compliance With cGMP Rules & Regulations
  • Models Available From 3 To 1250 Liter
  • Fully Automatic Operation Based On PLC-HMI With Touch Screen Control
  • Contact Parts SS 316 Or SS 316 L Quality
  • Uniform Mixing & Granulation
  • Less Handling Or Hygienic
  • Robust In Construction
  • The Basic Structure Is Made Up Of Stainless Steel 304 Quality Heavy Duty Square Pipe Covering From Outer Side With Stainless Steel 304 Quality Sheets As Well
  • Anti Vibration Mountings Provided
  • Mixing Container In Vertical, Cylindrical-Conical Design
  • Adequate Mixing & Granulating Time
  • Electro-Pneumatic Product Discharge System
  • Electro-Pneumatic Lid Opening System
  • Effective Sealing To Prevent Leakage
  • Shaft Seal With Gland And Having Air Purging Design For Both Mixing Impellor & Chopper
  • Easy To Clean & Maintain
  • All Contact Surfaces For The Product Are Polished & Made To A Mirror Finish, While Non-Contact Surface & Outer Finish Is Made To A Matt Finish/Polish
  • AC Variable Frequency Drives (VFD) For Both Mixing Impellor & Chopper Motor
  • Flameproof (FLP) Motors/Electricals Available (Optional)
  • Inline Wet Cone Mill With AC VFD Available (Optional)
  • Binder Addition Spray System (Optional)
  • CIP/WIP System (Optional)
  • Jacketed Bowl With Temperature Control/Display (Optional)
  • In Compliance With 21 CFR Part 11 (Optional)
  • Innovative Swing Type Lid Opening Arrangement Instead Of Conventional (Optional)
  • Integrated Transfer System To Fluid Bed Dryer Or Another Machine (Optional)
  • Automatic Powder Loading To The Bowl Through Either L&P (Lifting & Positioning) System Or Powder Transfer system (PTS) through vacuum (optional)
  • Mixing Of Substances Uniformly And Homogeneously With Special Design Mixer & Chopper Blades
  • Electro-Pneumatic Operated Discharge
  • Effective Sealing
  • Continuous Air Purging Through Drive Shaft To Avoid Product Spilling
  • Easy To Clean Machine
  • Fully Automatic Operation Through Programmable
  • The Impeller Mixing Blade Consists Of Advanced Three Blades Specially Designed For Intense Mixing. The Angles Of The Blades Are Designed To Ensure Homogeneous Mixing Of Different Ingredients. The Mixing Blade Assembly Is Mounted On The Main Shaft With Separate Bearing Housing Which Fully Eliminates Any Chance Of Cross Contamination Of Product With Any Lubricants

Optional Features

  • PLC System
  • Jacketed Type Pot
  • Davit Arm Type Lifting & Swivelling
  • Flame Proof Construction
  • In-Line Cone-Mill At Discharge

Technical Specifications

MODEL AIMS–RMG–25 AIMS–RMG–50 AIMS–RMG–100 AIMS–RMG–150 AIMS–RMG–250 AIMS–RMG–300 AIMS–RMG–400 AIMS–RMG–600 AIMS–RMG–800 AIMS–RMG–1000 AIMS–RMG–1200
Gross Volume (Liter) 25 Liter 50 Liter 100 Liter 150 Liter 250 Liter 300 Liter 400 Liter 600 Liter 800 Liter 1000 Liter 1200 Liter
Working Volume (Liter) 20 Liter 40 Liter 80 Liter 120 Liter 200 Liter 240 Liter 320 Liter 480 Liter 640 Liter 800 Liter 960 Liter
Batch Size (Kg) 5 To 10 Kg 10 To 20 Kg 20 To 40 Kg 30 To 60 Kg 50 To 100 Kg 60 To 120 Kg 80 To 160 Kg 120 To 240 Kg 160 To 320 Kg 200 To 400 Kg 250 To 500 Kg
Impeller Mixer Motor (HP) 5 To 10 Kg 10 To 20 Kg 20 To 40 Kg 30 To 60 Kg 50 To 100 Kg 60 To 120 Kg 80 To 160 Kg 120 To 240 Kg 160 To 320 Kg 200 To 400 Kg 250 To 500 Kg
Chopper Motor (HP) 2 HP 3 HP 3 HP 5 HP 5 HP 5 HP 7.5 HP 10 HP 15 HP 25 HP 30 HP
Total Electric Power (HP) 7 HP 10.5 HP 13 HP 20 HP 35 HP 35 HP 47.5 HP 60 HP 75 HP 100 HP 130 HP
Electrical Power Supply 230 Volts ± 10% Or 440 Volts ± 10% / 50 Hz Or 60 Hz / 3 Φ Phase / A.C. Power Supply
Compressed Air Pressure (Bar) 6 To 7 Bar
